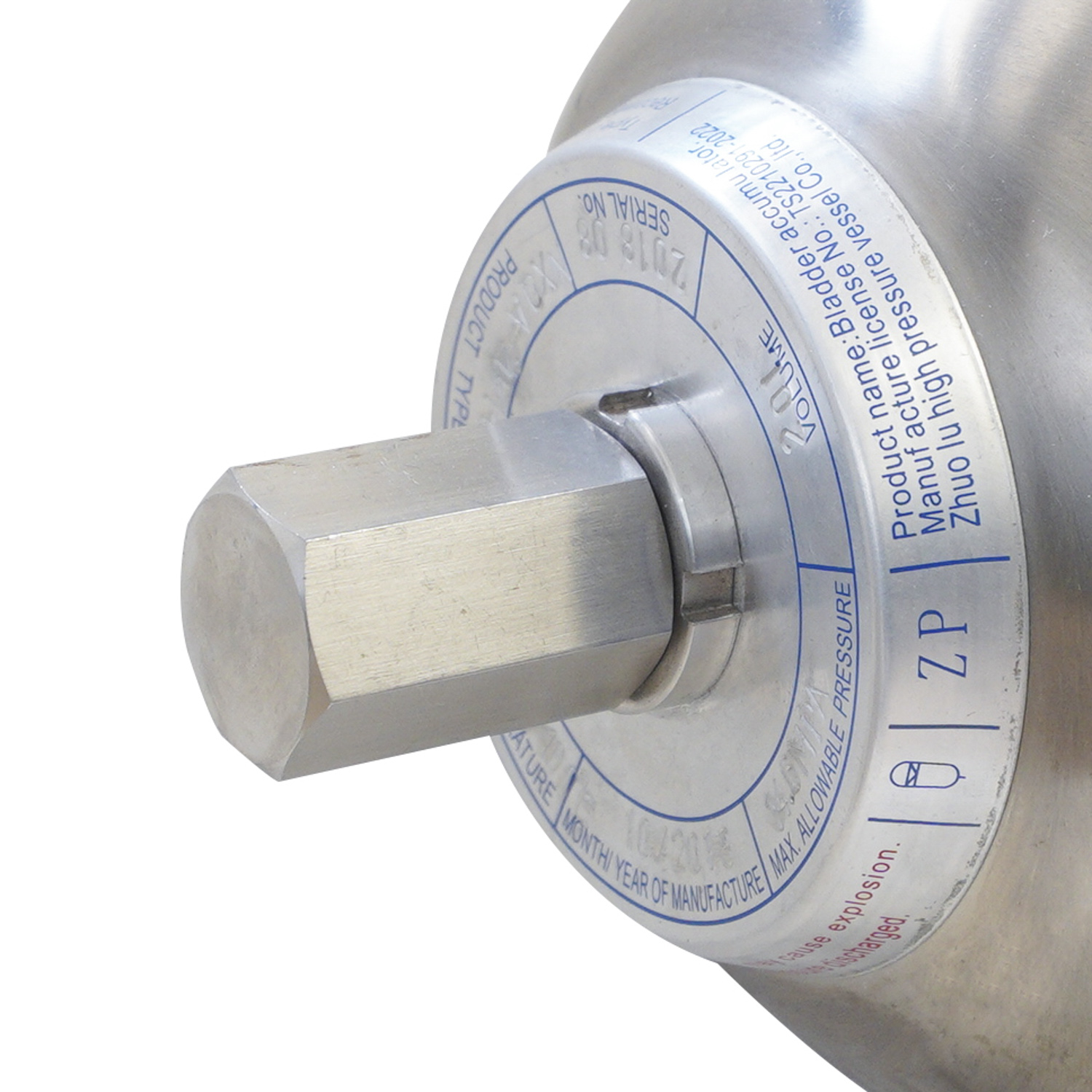

Stainless steel complete set of bladder accumulator

SPECIFITIONS FOR BLADDER TYPE ACCUMULATOR(GB/T 20663)

NO.	TYPE	SERVICE PRESSURE (Mpa)	CAPACITY V(L)	WEIGHT APPROX. W(Kg)	CONNECTING SIZE FOR LIQUID PASSAGE		HEIGHT APPROX. L (mm)	DIAMETER Do（mm）	B (mm)	C ( mm)	E (mm)	ФF （mm）	ФG (mm)	Фh (mm)
					Flange ФI	Thread A
1	NXQA-(10~57)/20-L-Y	20	10	39		M60×2 ZG2＂	556	229	58	92	36.9	76
			19	60			854
			38	95			1375
			42	106			1525
			57	137			1978
2	NXQA-(25~40)/31.5-L-Y	31.5	25	76		M60×2	1069	229	77	92	41.6	76
			40	113			1556
3	NXQAB-(20~42)/20-L-Y	20	20	60		M60×2	865	229	73	92	41.6	76
			25	76			1069
			38	95			1385
			42	113			1535
4	NXQA-(10~40)/10-L-Y	10	10	42		M60×2	660	219	84	86	41.6	75
			16	57			870
			25	79			1170
			40	119			1690
5	NXQA-(10-40)/10-F-Y	10	10	46	Ф50		685	219	85	110	41.6		125	160
			16	61			895
			25	83			1195
			40	123			1715
6	NXQA-(10~40)/20-L-Y	20	10	42		M60×2	660	219	84	86	41.6	75
			16	57			870
			25	79			1170
			40	119			1690
7	NXQA-(10~40)/20-F-Y	20	10	46	Ф50		685	219	85	110	41.6		125	160
			16	61			895
			25	83			1195
			40	123			1715
8	NXQA-(10~40)/31.5-L-Y	31.5	10	42		M60×2	660	219	84	86	41.6	75
			16	57			870
			25	79			1170
			40	119			1690
9	NXQA-(10~40)/31.5-F-Y	31.5	10	46	Ф50		685	219	85	110	41.6		125	160
			16	61			895
			25	83			1195
			40	123			1715
10	NXQA-(1.6~6.3)/10-L-Y	10	1.6	12.82		M42×2	355	152	74	66	41.6	61.5
			2.5	15			420
			4	18.6			530
			6.3	25.6			700
11	NXQA-(1.6~6.3)/20-L-Y	20	1.6	12.82		M42×2	355	152	74	66	41.6	61.5
			2.5	15			420
			4	18.6			530
			6.3	25.6			700
12	NXQA-(1.6~6.3)/31.5-L-Y	31.5	1.6	12.82		M42×2	355	152	74	66	41.6	61.5
			2.5	15			420
			4	18.6			530
			6.3	25.6			700
13	NXQA-(40~100)/10-L-Y	10	40	134		M72×2	1066	100	229	106	55.37	90
			63	188			1500
			80	221			1760
			100	274			2200
14	NXQA-(40~100)/20-L-Y	20	40	134		M72×2	1066	100	299	106	55.37	90
			63	188			1500
			80	221			1760
			100	274			2200
15	NXQA-(40~100)/31.5-L-A	31.5	40	134		M72×2	1066	100	299	106	55.37	90
			63	188			1500
			80	221			1760
			100	274			2200
16	NXQA-(40~100)/10-F-Y	10	40	142	Φ63		1086	96	299	130	55.37		150	200
			63	196			1520
			80	229			1780
			100	282			2220
17	NXQA-(40~100)/20-F-Y	20	40	142	Φ63		1086	96	299	130	55.37		150	200
			63	196			1520
			80	229			1780
			100	282			2220
18	NXQA-(40~100)/31.5-F-Y	31.5	40	142	Φ63		1086	96	299	130	55.37		150	200
			63	196			152
			80	229			1780
			100	282			2220
19	NXQAB-(10~40)/31.5-L-Y	31.5	10	42		M60×2	646	70	219	86	41.6	82
			16	57			856
			25	79			1156
			40	119			1676

Bladder accumulators are mainly used in hydraulic systems such as oil mining industry, hydraulic machine tools and construction machinery. It has the functions of storing energy, eliminating impact, leakage compensation, emergency energy, transmitting and maintaining pressure in liquid control. In the hydraulic system, it can avoid the damage of pipeline components, extend the service life of equipment, reduce downtime losses, stabilize the performance of hydraulic system, save energy and other functions.
